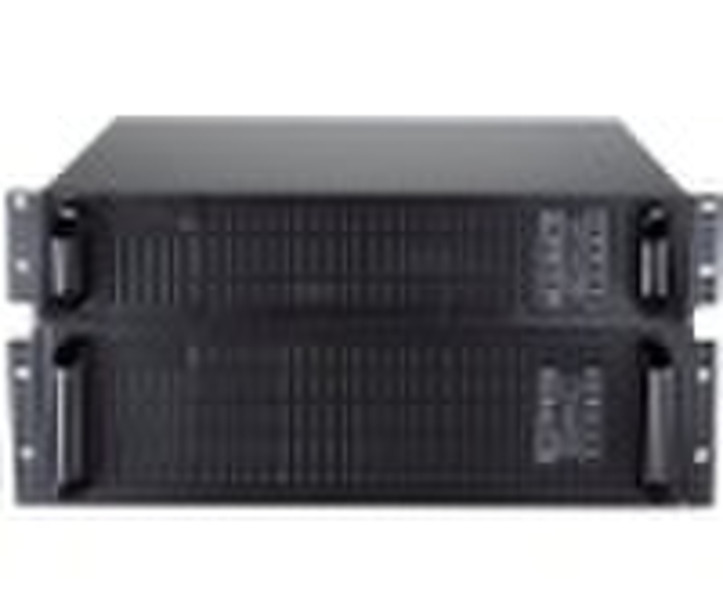

Rack Mount UPS

Rack Mount UPS Production Servers, Data centers, Critical network devices, Sensitive electronic equipment... KEY FEATURES 1.True on-line double conversion technology with advanced microprocessor control 2.Wide input voltage range 3.Zero transfer time 4.Protection against all type of power problems 5.Self test while start of the UPS 6.Site wiring fault warning 7.On-battery power-on function 8.Smart RS232 communication interface 9.Intelligent slot available 10.Sealed lead-acid, maintenance free battery Castle RT features the option of 19 inch rack mounting or tower applications. These compact units are available in 1000 VA to 6000 VA in 2 U''s. The incorporated double conversion with true Isolation technology offers the most complete power protection and highest quality power for all IT applications. The double conversion of the ISO series completely isolates incoming AC power problems converting the power to DC voltage that charges the batteries and provides power to the main transformer. The main transformer delivers constant pure sine wave output AC for all of your most critical applications. The Casles RT series provides many appealing and powerful features including true RS 232 management software, SNMP Slots for remote monitoring and control, extended backup time capacity, load sensing, overload protection, dynamic by-pass, temperature monitoring software for preventative diagnostics. Rack Mount UPS TECHNICAL SPECIFICATIONS: Product Series Rack Mount 1 6kVAModelRT1KRRT2KRRT3KRRT6KRRated PowerVA/W1kVA / 0.7kW2kVA / 1.4kW3kVA / 2.1kW6kVA/4.2kWInputNominal Voltage220VACVoltage Range115 300VAC176 276VACFrequency Range46 54Hz(default), user adjustable within 40 60Hz46 54HzPower Factor0.970.98ConnectionIEC320-10A inletIEC320-16A inletTerminal BlockOutputVoltage220VAC ± 2%220VAC ± 1%Frequency46 54Hz or 50Hz ± 0.2Hz (Line mode) 50Hz ± 0.2Hz ( Battery mode)46 54Hz (Line mode) 50Hz ± 0.05Hz ( Battery mode)WaveformSine WaveOverload Capability108% 150% for 30 sec., ³150% for 300 ms105% 130% for 10 min., ³130% for 1 min.Current Crest Ratio3:1BypassAutomatic Transferon overload and UPS failureBefore UPS Power-onDefault NO, user adjustable to YESYesVoltage Range80 264VAC (Default), user adjustable within 80 286VAC176 261VACOutput ConnectionsIEC320 -10A * 4IEC320-10A * 4IEC320-10A and Terminal BlockIEC320-10A * 4 and Terminal BlockTransfer Time0 ms; less than 4 ms from inverter to bypass and vice versaZeroLED indicatorsStatusLoad level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, FaultAudible AlarmBypass, On battery mode, Battery low, Overload, FaultCommunicationsRS-232 Serial InterfaceIntelligent Slot; OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC)Network Surge ProtectionRJ45 I/O port available for network or Fax/ModemEnvironmentalOperating Temperature0 40°COperating Humidity20 90% non-condensingMain UnitNet Weight (Kg)15.310.311.218.3Dimensions (W x D x H) mm482.6 x 450 x 88 (2U)482.6 x 600 x 130 (3U)Battery PackTypeInternal BatteriesExternal Battery PackNominal DC Voltage36VDC96VDC240VDCBackup Time (Full load)5 min9 min (with 1 BP)5 min (with 1 BP)7 min (with 1 BP)Net Weight (Kg)--25.358.2Dimensions (W x D x H) mm--482.6 x 450 x 88 (2U)482.6 x 600 x 130 (3U)
